Lithium Titanate LTO-100

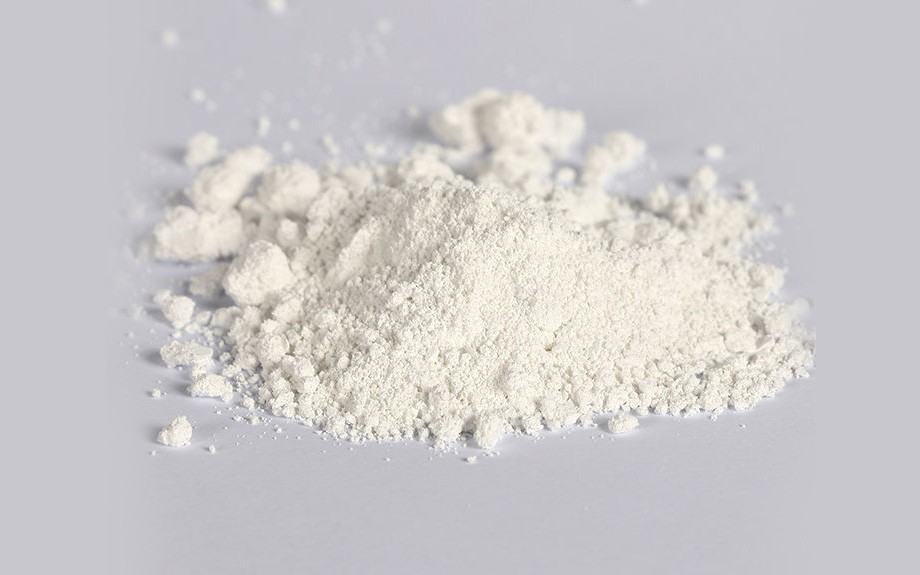

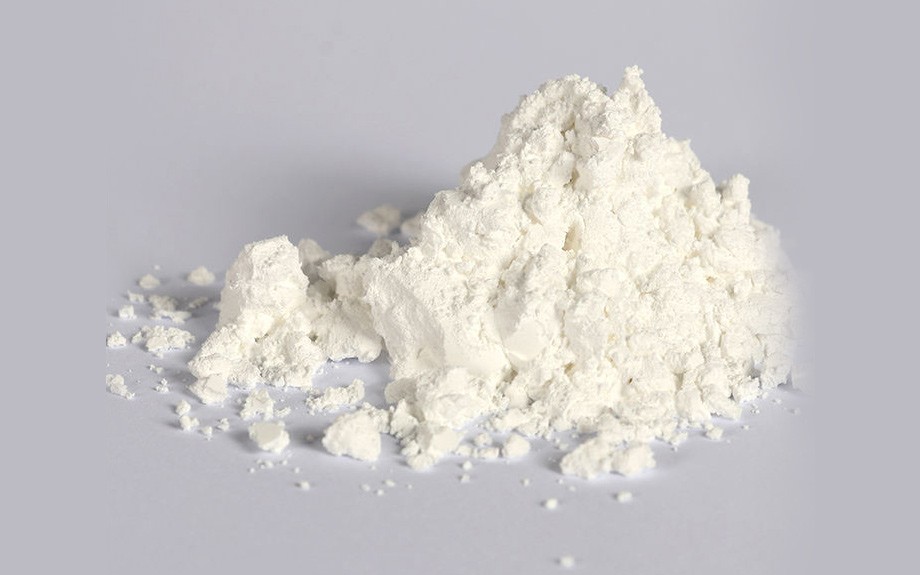

Lithium Titanate is a compound containing lithium and titanium. It is an off-white powder at room temperature and has the chemical formula Li4Ti5O12. LTO-100 is a spinel type lithium titanate made based on titanium dioxide, with stable crystal structure and three-dimensional ion exchange channel. It is the anode component (-) of the fast charging lithium-titanate battery. It is also used as an additive in porcelain enamels and ceramic insulating bodies based on titanates.


Other Name:                       Lithium titanium oxide；Lithium titanate spinel

Molecular Formula:           Li4Ti5O12

CAS Number：                   12031-95-7

EC Number:                         619-916-2

Consult Return list
Technical Specification
Special Features
Typical Application Data
China Patents
ItemTypicalValue
Li（%）6±0.2
ParticleSize（μm）D100.5
D501.0~2.0
D905                    .0
Moisture（%, ≤）0.05
Density（g/cm3）3.55
TAPDensity（g/cm3）1.07
PH9.0~10.0
SurfaceareaBET（m2/g）10.0
InitialSpecificcapacity（mA•h/g）≥165.0
Initialcharging&dischargingefficiency（%）≥97.0
TypicalApplicationpower-typelithium batteries,energy storage lithium batteries,high rate chargeable and dischargeable lithium batteries and super capacitors.
StorageKeep container tightly closed in a dry and well-ventilated place. Keep in a dry place.
HandingProvid eappropriate exhaust ventilation at places where dust is formed. Please see the Material Safety Data Sheets (MSDS) of this product for more safety information prior to use.

◆ LTO-100 is produced one step by chemical synthesis under mild conditions, quality is stable and consistent.

◆ It is a zero strain material, hardly changed during charge and discharge, with excellent cycling performance.

◆ Withaniondiffusion rate higher than that of a carbon negative electrode by a magnitude level, it can be charged quickly.

◆ Discharge voltage is stable, and electrolyte does not decompose, improve the safety performance of lithium battery.

◆ Ithas high diffusion coefficient of lithium ion (2*10-8cm2/s), and can be charged and discharged at high rate.

◆ Lithiumtitanate has high electric potential and hardly to generate lithium dendrites, which ensures the safety of lithium battery.


Soft packaging application (Cathode material：Ni-Co-Mn 523, Anode material：LTO-100)

Ratio                    g capacity (mAh/g)                     Conservation rate
1#2#
1C160100.00%100.00%
5C15093.71%93.70%
10C13886.23%86.32%
15C13282.91%83.05%
30C12478.16%79.42%
Conclusion:


  • Buttonbattery 0.5C specific capacity 165mAh/g, 300 cycles, capacity almost no attenuation.

  • Crystal integrity, good uniformity of products.

  • Buttontest cycle life is long, stable.

  • Soft packaging testing shows ratio performance is excellent, can achieve the purpose of fast charging.

  • 2016110950692: Invention of a production process for lithium titanate.

  • 2016110950300: Invention of a production process of spinel structure lithium titanate.

  • 2016110950673: Invention of a production process of high vibration solid density lithium titanate.

  • 2020224193473: The utility model relates to lithium battery roasting rotary kiln.
